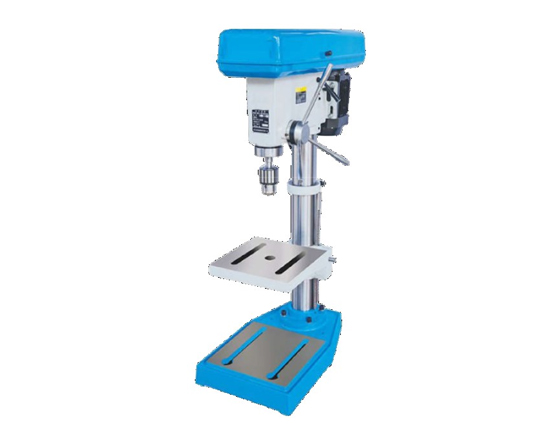

Pillar Drilling Machines Light Duty
₹2,150,000.00
Technical Specifications:
| Model No. | BDE-16 | BDE-25 |
|---|---|---|
| Max. Drilling capacity (mm) | 16 | 25 |
| Diameter of column (mm) | 70 | 85 |
| Spindle travel (mm) | 85 | 110 |
| Distance Spindle axis to column generating line (mm) | 180 | 200 |
| Max. Distance spindle nose to table (mm) | 410 | 390 |
| Max. Distance spindle nose to base (mm) | 590 | 1140 |
| Spidle taper | MT2 | MT3 |
| Spindle speeds range (rpm) | 270 ~ 2880 | 200 ~ 2280 |
| Spindle speeds series | 12 | 9 |
| Dimension of table surface (mm) | 300 | 280-280 |
| Dimension of Base working surface (mm) | 300×300 | |
| Dimension of base (mm) | 445×270 | 566×356 |
| Overall height(mm) | 960 | 1680 |
| Power of motor (IN) | 550 | 750 |
| G.W/N. W (KG) | 68/65 | 115/108 |
| Packing dimension (CM) | 91×51.5×27 | 108x77x34 |
