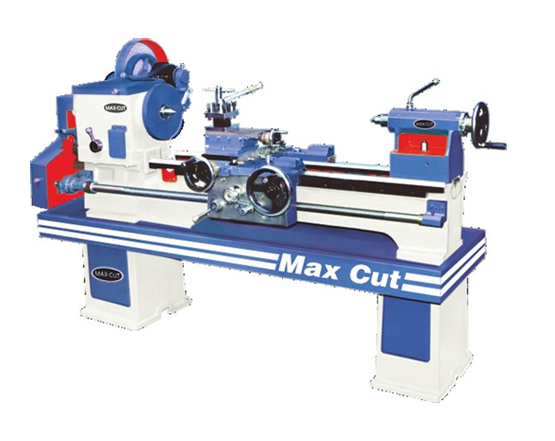

Medium Duty Lathe (Standard Model)
₹2,150,000.00
Technical Specifications:
Standard Model
| Models | MD 212 | MD 212H |
|---|---|---|
| Height Of Centre (mm) | 212 | 250 |
| Width of Bed (mm) | 280 | 280 |
| Max Swing over bed (mm) | 410 | 490 |
| Max Swing over Slide (mm) | 240 | 320 |
| Spindle Bore (mm) | 52 mm | 80 mm |
| Spindle Nose | 6 TPI | 6 TPI |
| Spindle Speed 6(R.P.M) | 40 to 550 | 40 to 550 |
| Cross Slide Travel (mm) | 240 mm | 240 |
| Lead Screw TPI | 4 TPI | 4 TPI |
| Tail Stock Sleeve | MT-4 | MT-4 |
| Power Required (H.P.) | 2 | 2 |
Admit Between Centers
| Length | A. B. C |
|---|---|
| 4.6′ | 500 |
| 5.3′ | 725 |
| 6′.0” | 950 |
