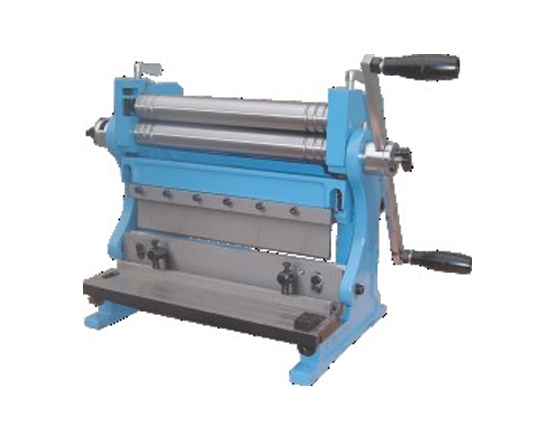

3-In-1 Combination – Hand Operated
₹2,150,000.00
Technical Specifications:
| MODEL | 3-IN-1/305 | 3-IN-1/610 | 3-IN-1/760 | 3-IN-1/1016 | 3-IN-1/1320 | 3-IN-1/1067×1.5 | 3-IN-1/1320×1.5 |
|---|---|---|---|---|---|---|---|
| Bed Width | 305mm | 610mm | 760mm | 1016mm | 1320mm | 1067mm | 1320mm |
| Max. Shearing Thickness | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.5mm | 1.5mm |
| Max. Bending Thickness | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.5mm | 1.5mm |
| Max. Bending Angle | 90° | 90° | 90° | 90° | 90° | 90° | 90° |
| Max. Rolling Thickness | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.5mm | 1.5mm |
| Min. Rolling Diameter | 39mm | 39mm | 39mm | 40mm | 50mm | 60mm | 60mm |
| Packing Dimension | 490x330x420mm | 840x410x660mm | 1000x410x660mm | 135x45x72cm | 168x54x78cm | 150x59x93cm | 179x59x93cm |
| Net/Gross Weight | 43/45Kgs. | 112/123Kgs. | 36/153Kgs. | 195/210Kgs. | 349/377Kgs. | 390/440Kgs. | 470/530Kgs. |
-
